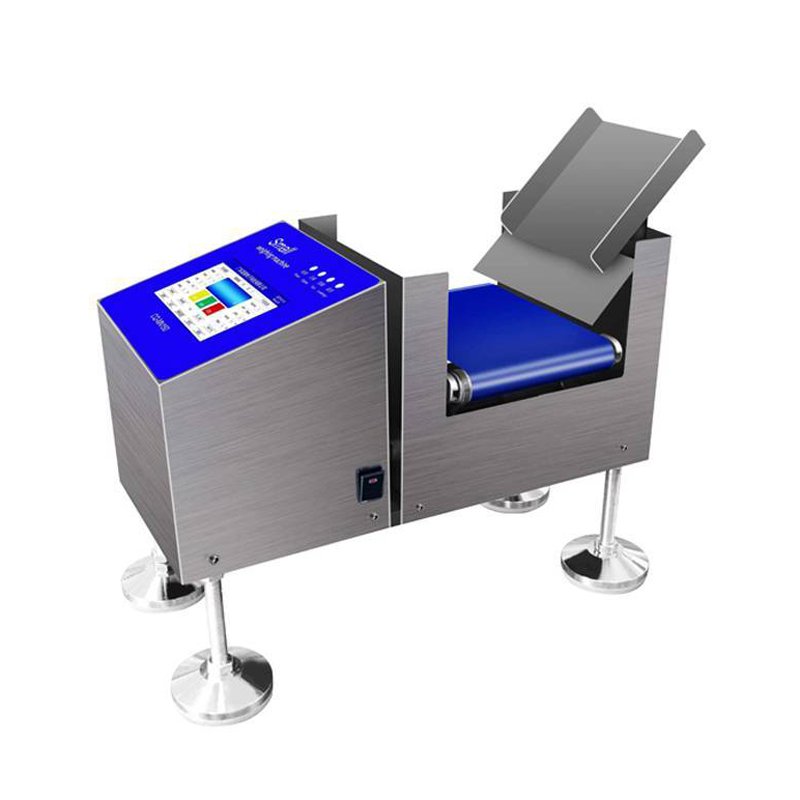

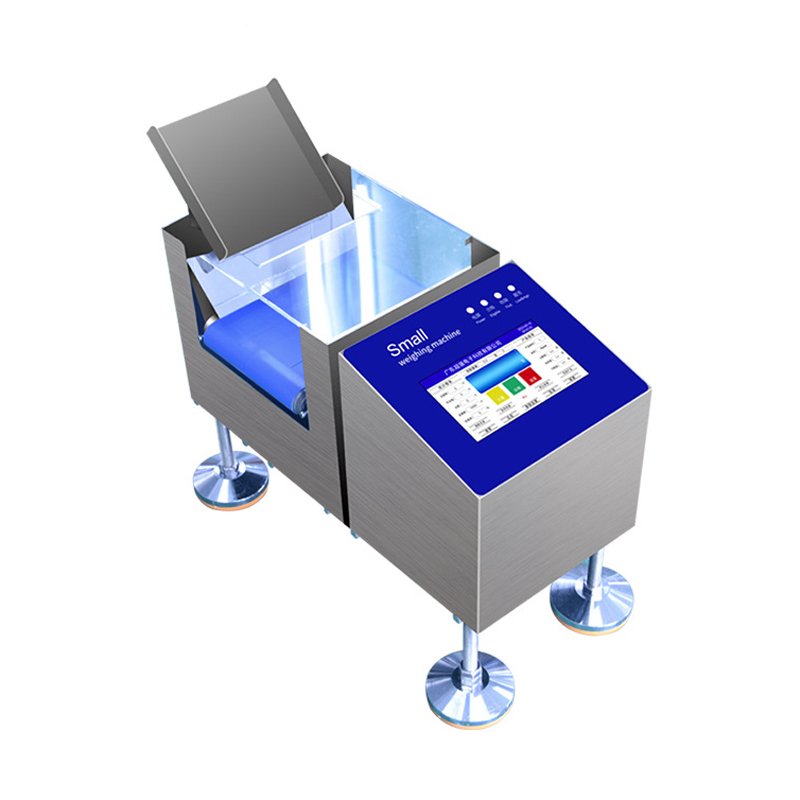

Touch Screen Convoyor Belt Mini Checkweigher 0.1g (RT-1215H)

Category Check Weigher

Additional information

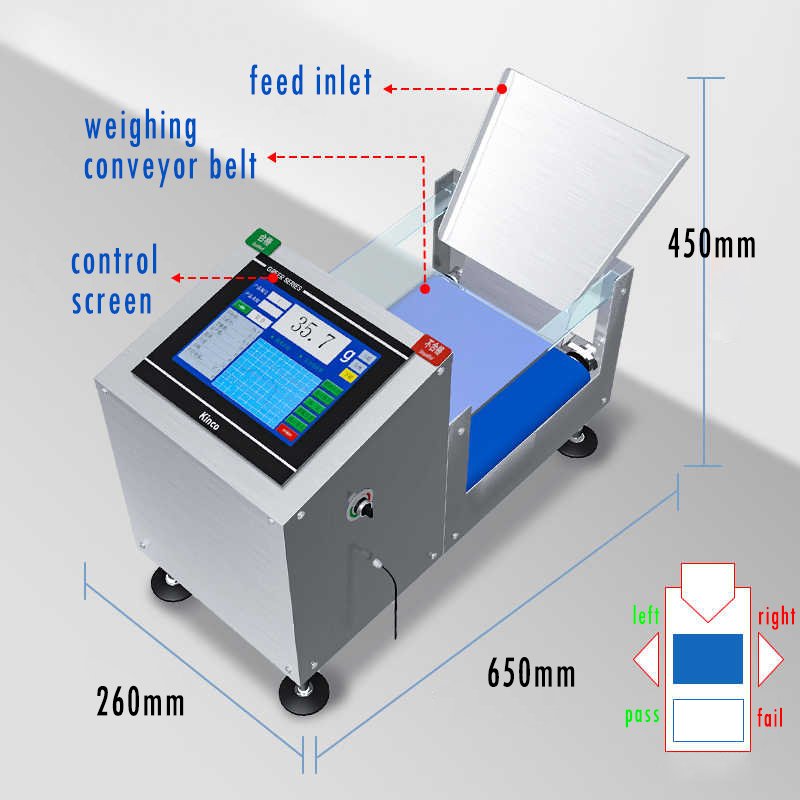

High Speed Touch Screen Mini Checkweigher for Small Product

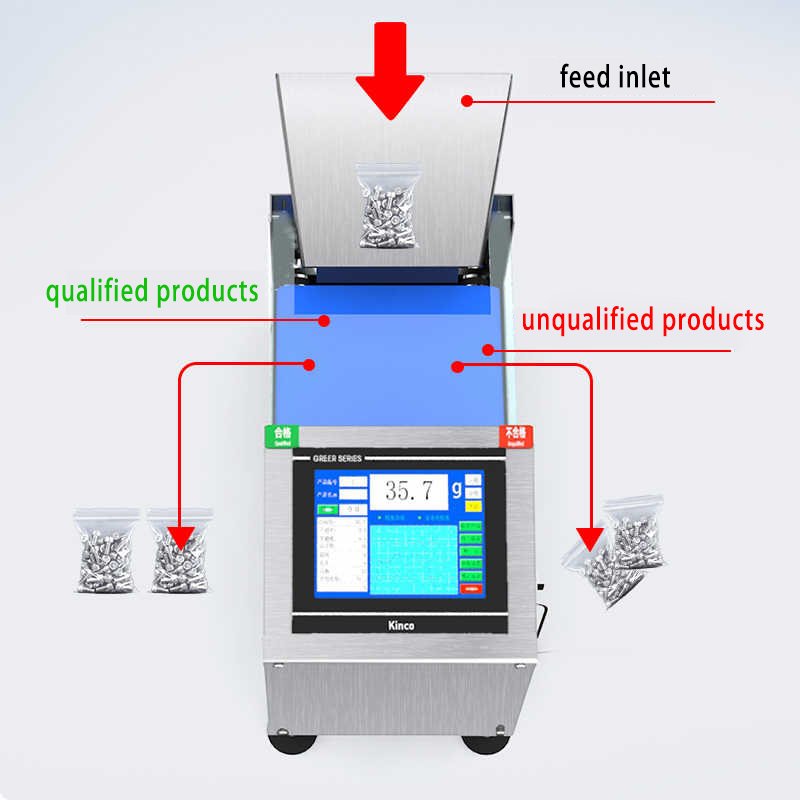

The Small Check Weigher is designed for fully automated packaging lines. When it detects overweight or ultra-light products, the conveyor belt will stop, an alarm will sound, and the screen will display the weight. When the substandard product is removed from the product line, the belt will run automatically. Auto ejector is optional.

Product Details：

Product Introduction:

The RT-1215H Small Weighing Machine is widely used in various industries for automatic detection of insufficient, excessive, missing, and empty packaging during production, and automatically eliminates defective products, sorts products, and improves production line efficiency.

Product Testing Style: Loose, bagged, bottled, boxed, etc.

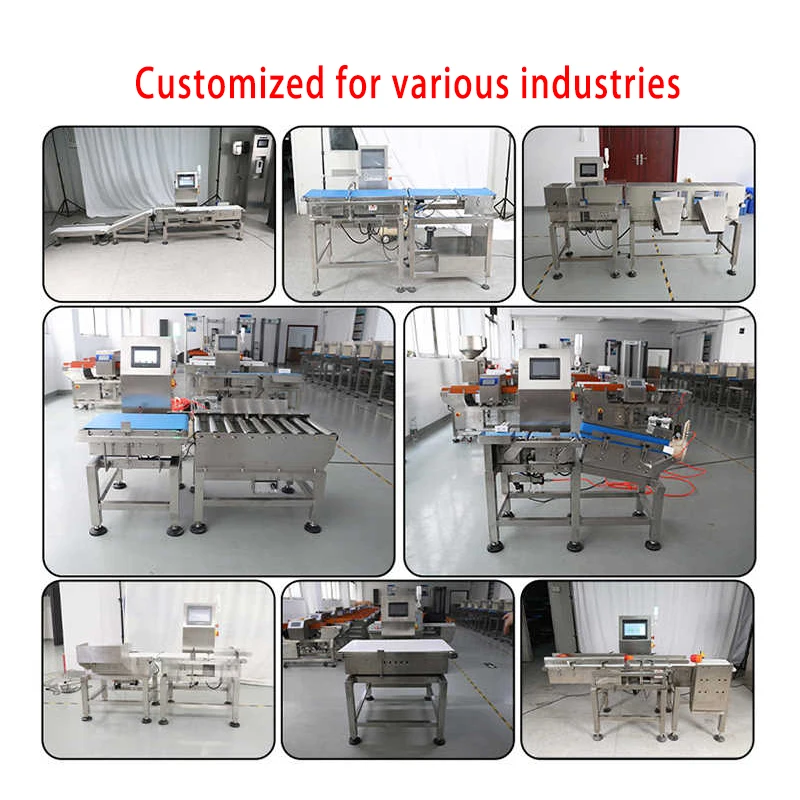

Applicable Industries: Food packaging, hardware, express delivery industry, health products, fruits, cosmetics, textiles, etc.

Product Parameters

Product Name	Small high-precision weighing machine
Model	RT-1215H
Number of Sections	2 Sections: Weighing section + Rejection section
Number of Sections	3 Sections: Cushion section + Weighing section + Rejection section
Weighing Range	1~200g / 5~1000g (Optional or specified)
Minimum Scale	0.1g ( Based on Max. Weighing range )
Maximum Speed	4000 pieces/hour
Rejection method	Remove left and right
Sorting Accuracy	± 0.1g ~ ±1g (Based on the size of the weighing area)
Detection Object Size	L: Max. 200 / 300 / 400 / 500 / 600 mm (Optional or specified)
	W: Max.150 / 200 / 300 / 400 mm (Optional or specified)
	H (mm): Max.100 / 150mm
Belt Height from Ground	680 mm~750 mm (Or customized height)
Conveyor Belt Speed	20m / min fixed speed or 15-30m / min adjustable speed (or customized)

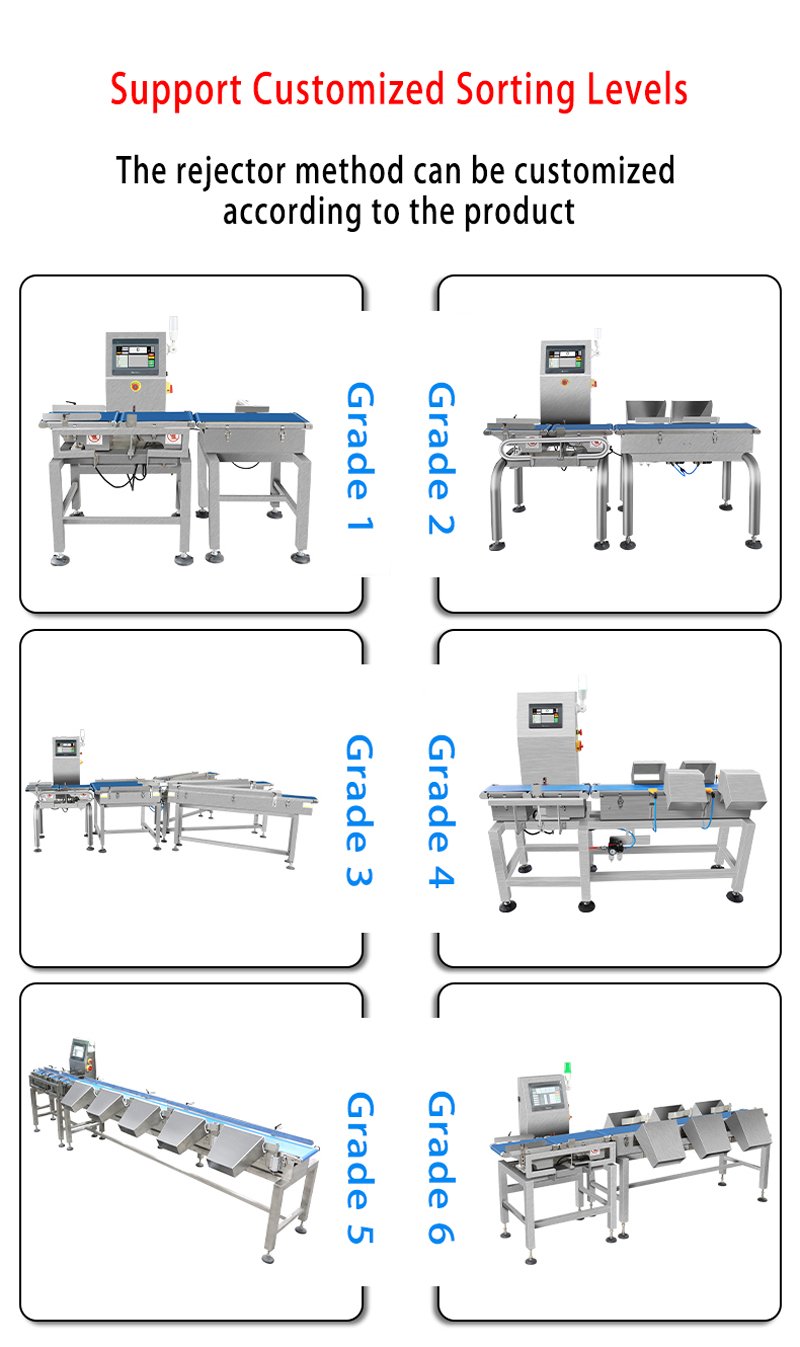

Number of Sorting	1 / 2 / 3 / 4 / 5 / 6 Outputs Sorting (or customized)
Material Surface	304 stainless steel surface polishing
Language	Chinese / English (or customized)
Input Voltage / Power	Single Phase AC220V 50Hz
Protection Level	IP54
Product Size	523.5mm(L)243mm(W)345.1mm(H)
Product Weight	56kg

Our Advantages

1. The electrical protection level of the whole machine is IP54.

2. Level 3 password protection provides more comprehensive protection for the secure operation of the device.

3. 2 Weight zones: qualified, unqualified (multi-zone sorting function requires external structure and independent configuration for optional selection)

4. Storage method for 100 sets of product testing target formula data.

5. Usage environment: To ensure optimal accuracy, the installation location of the weighing device should be far away from vibration sources and air vents, with a temperature of -10~40 ° C.

6. Note: Weighing accuracy refers to the third level of accuracy under specific conditions (directly related to the on-site environment, such as vibration and interference).

Recommend Products

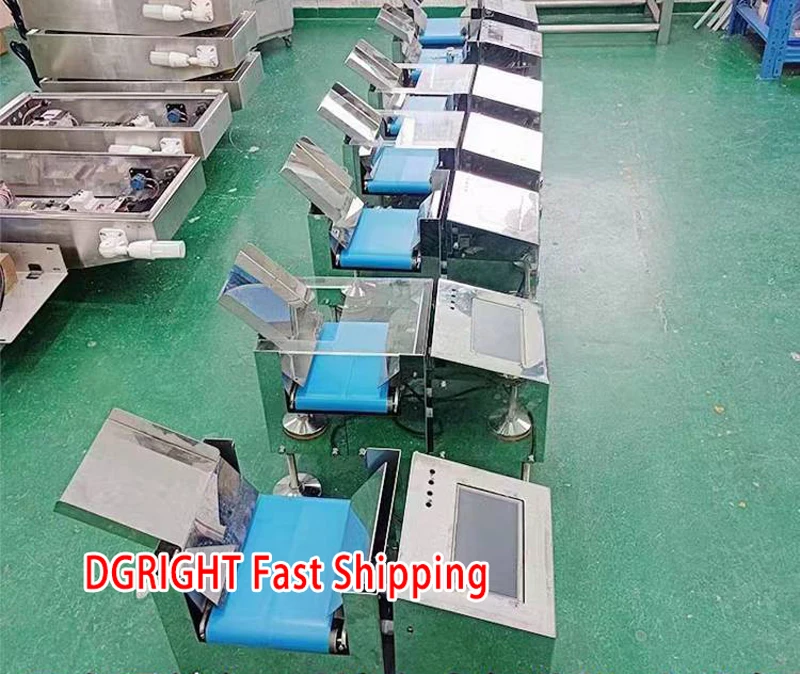

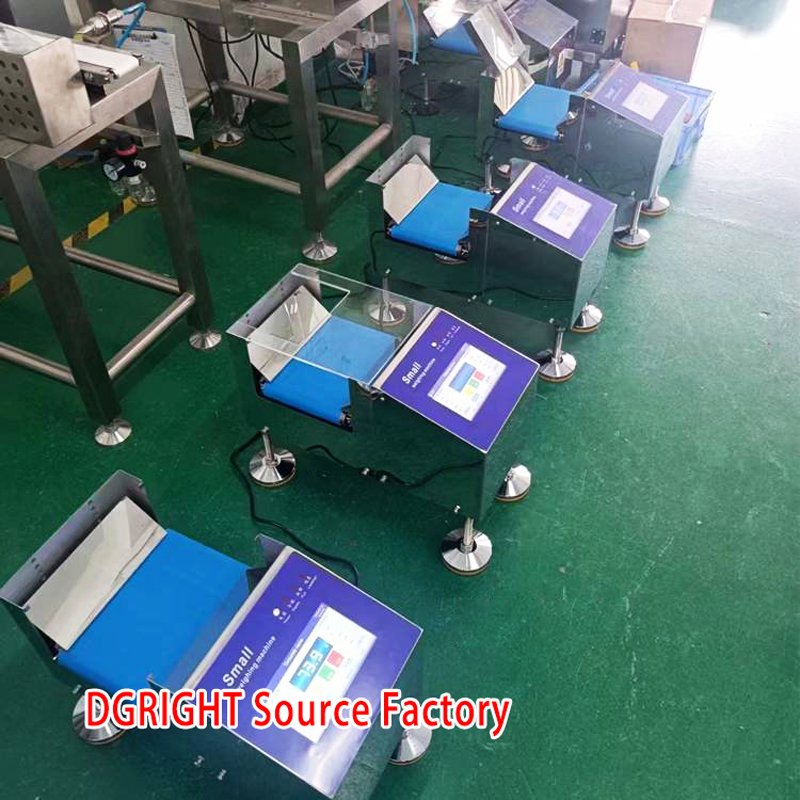

Workshop Photos
