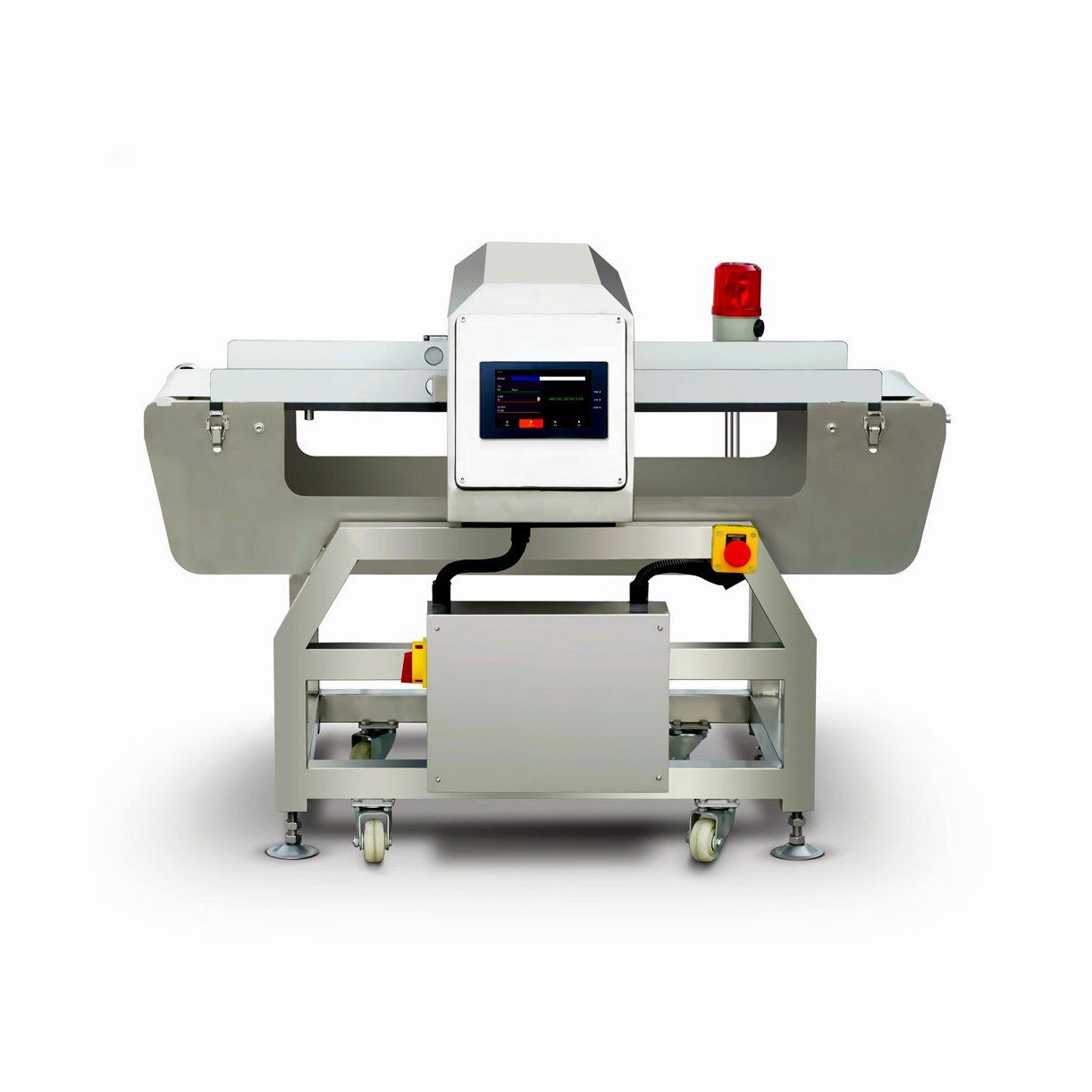

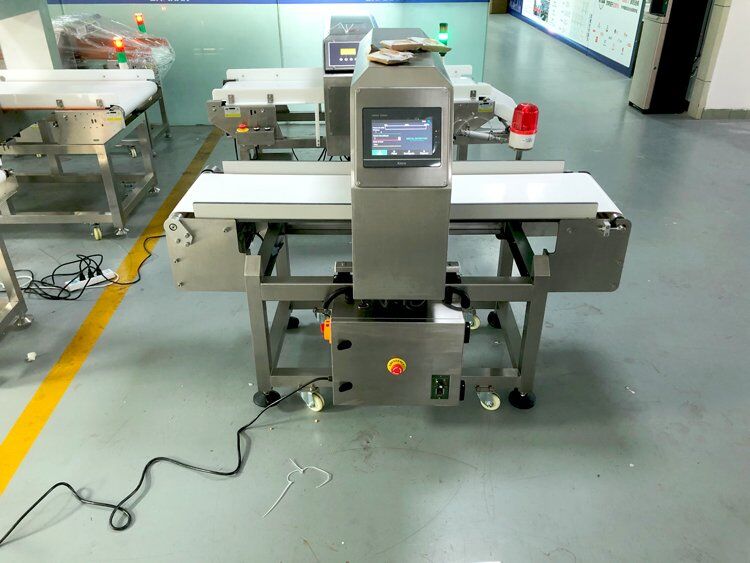

Aluminum Foil Packaging Metal Detecting Machine (RT-1212)
Additional information
| Model | RT-1212 |
|---|---|
| Customized support | OEM, ODM, OBM |
| Brand Name | DGRIGHT |

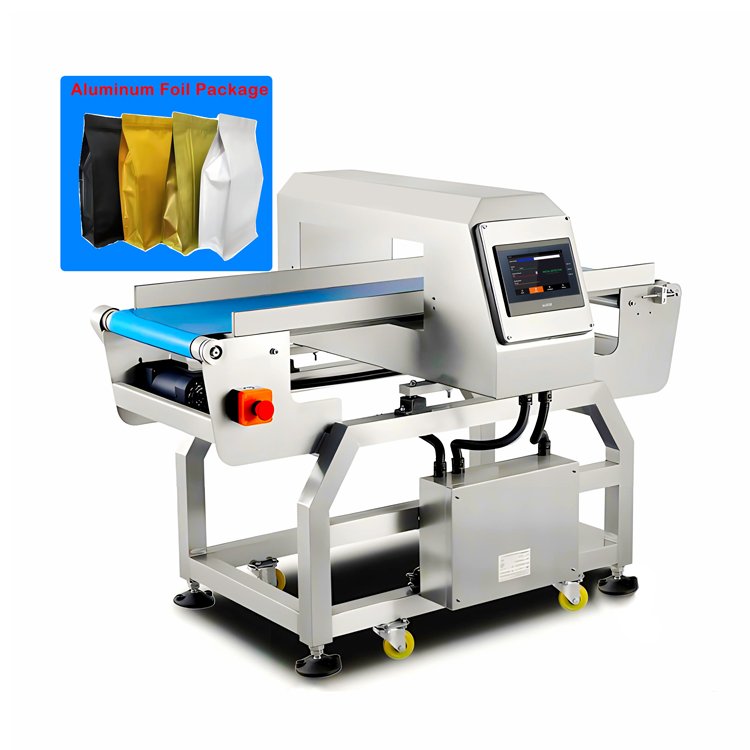

Industrial Metal Detector For Aluminum Foil Packaging
With over a decade of experience in food processing equipment manufacturing, DGRIGHT ensures that conveyors are designed for food safety and operator safety.
Other Features Include:
1、German digital circuit design, high detection accuracy.

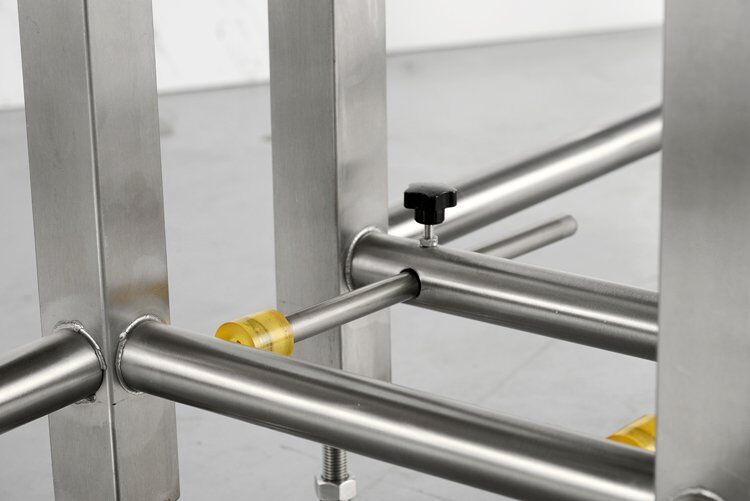

2、Scientific design, simple detachable rack, convenient for users to clean.
3、Detector probe and rack are made of stainless steel, waterproof ability.

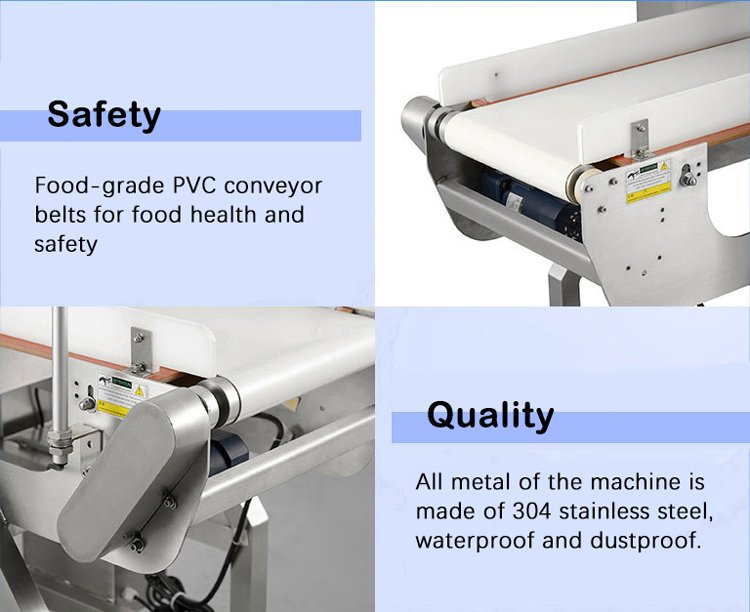

4、Metal detector conveyor belt using white food-grade imported conveyor belt.
5、Can detect common metal impurities in food (nails, blades, steel pins, screws, springs, etc.)
6、Detected food metal impurities trying to pass, automatic stop and backward and sound and light alarm. (Can be connected to an external alarm)
Product Details：
Product Introduction:
To detect products with aluminum foil packaging, aquatic products, frozen food, pickled products, etc., and magnetic metals such as stainless steel cleaning balls and wires lost in raw materials or products.

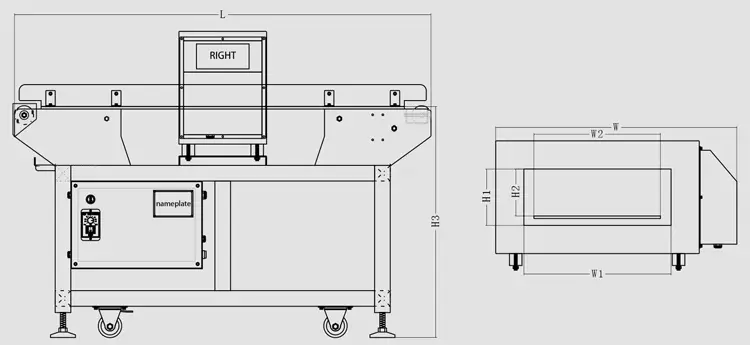

Product Structure:
W： Machine width L： Conveyor belt length height
W1：Inspection width W2：Detection channel width
H1：Inspection height H2：Detection channel
H3：Conveyor belt surface distance from the ground height
H4：Machine height
Product Parameters:
Note:
Inspection width and inspection height can be customized upon request.
| Product Name | Aluminum Foil Bags Packaging Metal Detectors | ||||
| Model | RT-1212 | ||||
| Detect height mm | 100mm | 150mm | 200mm | 250mm | 300mm |
| Detect width | 400mm, 600mm or customize | ||||
| Detect Sensitivity Fe | Fe≥0.8mm | Fe≥1.0mm | Fe≥1.5mm | Fe≥2.0mm | Fe≥2.5mm |
| Belt speed | 25m/min (adjustable) | ||||
| The sensitivity | 1.5 grade | ||||
| Sensitivity adjustment level | 100 | ||||
| Alarm mode | Sound and light alarm, conveyor belt stops automatically (optional automatic reject device, the conveyor belt does not stop, automatic rejection) | ||||
| Voltage | AC110V-AC220V | ||||
| Power | ≤400W | ||||
| Detect method | Electromagnetic wave detection | ||||

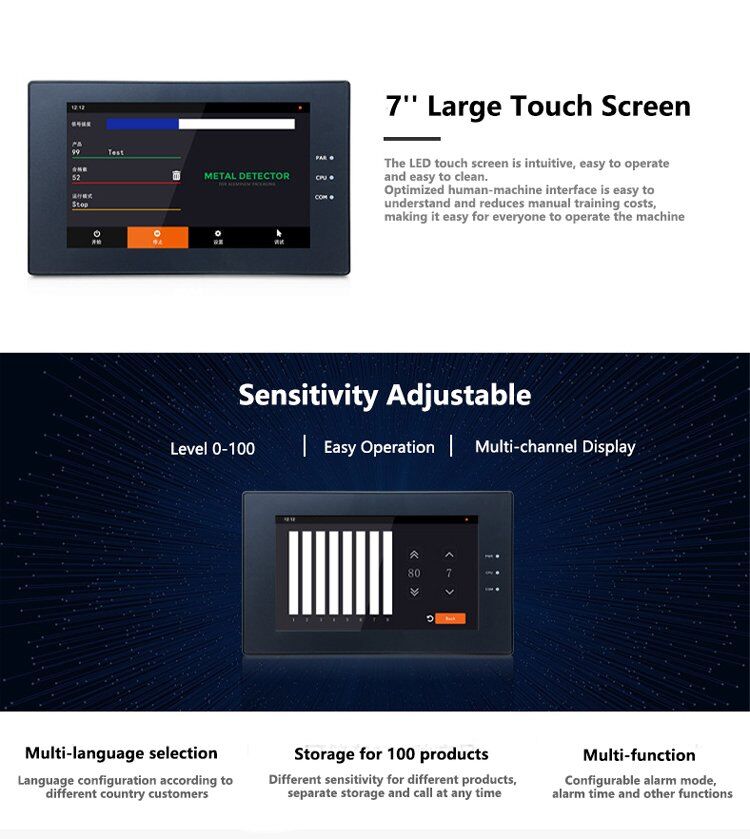

| Display | HD Touch Screen | ||||
| Operate language | English, Korean, Spanish (or custom) | ||||
Why Choose Us:
- Install imported anti-jamming devices with high sensitivity.
- The structure is light, easy to move;
- Inspection window height specifications for customers to choose according to needs;
- The conveying speed is fast can be applied to the assembly line operation;
- Can be equipped with an assembly line or automatic control device.
- Environmental protection function, the machine has no object to shut down by itself for 10 minutes.
- It has the function of detecting the automatic reversal of defective products.

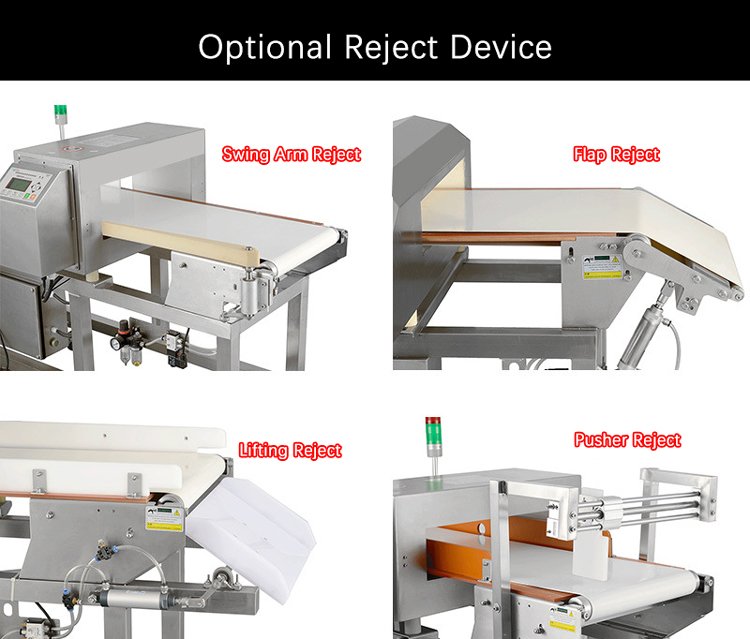

- According to the user’s needs, various reject devices (such as flaps, air blows, push rods, etc.) and lightweight, large-package-specific and heavy-duty fuselage designs can be used.

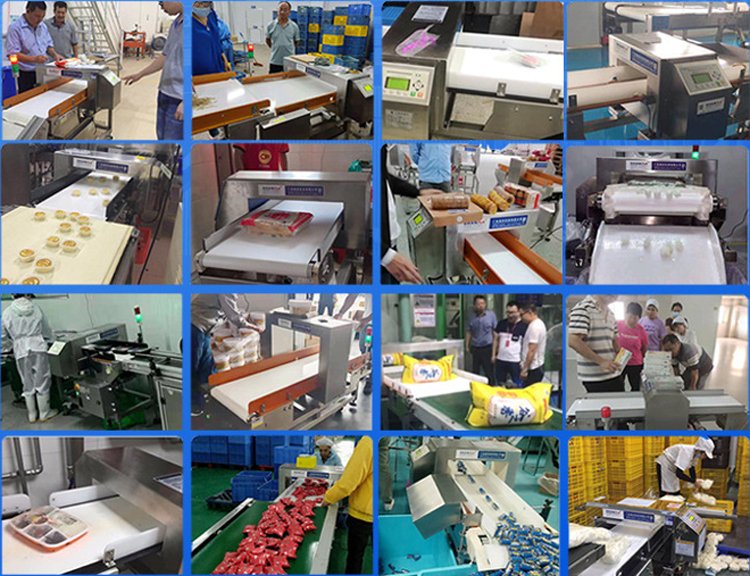

Customer Feedback Is Our Motivation To Keep Moving Forward!
